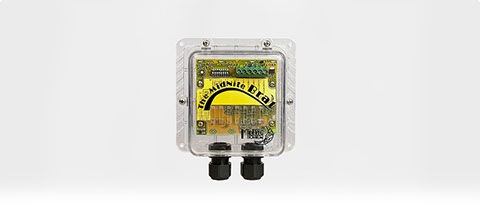

The Brat is simply the most versatile solar controller in its class. The Brat is a finely-tuned solar PWM charger capable of providing up to 30 Amps of charging current, with class-leading lighting and load control features including one-of-a-kind Solar Clock. Rain-proof out of the box, and supporting dead-battery charging and low-voltage load disconnect, The Brat is perfect for outdoor, marine, RV, and unattended remote applications.
Beneficios
Documentos
SELECTABLE CHARGING MODES 20A charger with 10A load control, 30A charger without load control
NO RELAYS, NO FANS, NO EXTERNAL HEAT-SINK
TYPE 3R ENCLOSURE
P/V INPUT VOLTAGE MAXIMUM - 60 volts
LED’S Four LED’s for Bulk, Float, Load On and Low Battery. Patterned blinking LED’s provide feedback about fault conditions.
NOMINAL BATTERY VOLTAGE 12 or 24V - Selectable
10 AMPS MAXIMUM LOAD CIRCUIT RATING
LOAD CIRCUIT 12 or 24V - Selectable
CUSTOMIZABLE LIGHTING CONTROLLER The Brat sports a highly customizable 16 position rotary switch lighting controller.
COMPACT DESIGN We understand space can be a struggle in a boat or RV. With that in mind we kept the physical design of the Brat compact without sacrificing performance.
SEALED FOR HARSH ENVIRONMENTS The Brat sports a highly customizable 16 position rotary switch lighting controller.
REPAIRABLE Field repairable printed circuit board (by a qualified technician)
BUILT IN ARLINGTON, WA - USA
